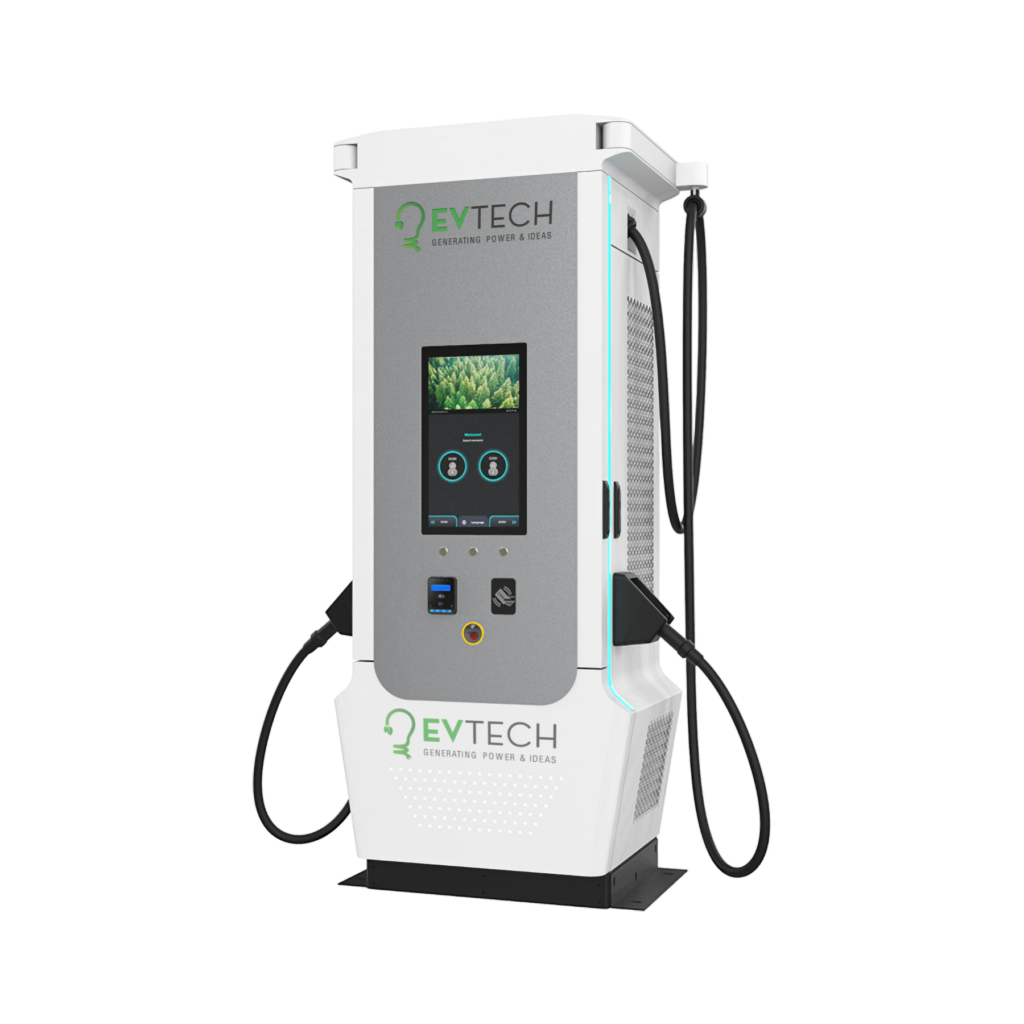

DC Fast Charger

DC Fast Charger

Fast & Flexible Charging Solutions

We can help your fleet enhance operations with low cost autonomous solutions. Our technology optimizes the usage of available power from the utility, while protecting the local electrical systems from dangers of overloading even when multiple chargers are being used simultaneously. EV Tech also offers flexible implementation options to suit your ideal number of chargers.

  • Easy Charging – No Account Setup for Your Customers

  • Total EV Charging Service Automation

  • No Infrastructure Upgrade Needed

  • Management of Level 2 AC and Level 3 DC Charging

  • 24/7 Autonomous Revenue Stream

  • Infrastructure Diagnostics

Fast Chargers EVT

Specifications: DC30P

Cloud service

EV OS

Maximum Output Power

30 kW

Output power

CCS1: 63 A @150~950 Vdc

CHAdeMO: 120 A @150~500 Vdc

Vehicle Connector

CCS1, CHAdeMO

Charging Cable Length

13 feet / 4 m

Input Power

3-phase, 5-wire, 480 Vac, 50 A maximum

Grounding System

TN, TT

Efficiency

≥ 94%

Power Factor

> 0.99

Display

7 inch LCD

Communication Protocol

OCPP 1.6 JSON

V2G Communication Interface

ISO 15118

Network Connectivity

Ethernet, Wi-Fi, 4G

RFID

RFID ISO/IEC 14443 A/B

NEMA enclosures (NEMA)

NEMA 3R

Impact Protection

IK10

Electrical Protection

Over voltage protection, over current protection, over power protection, over temperature protection, under voltage protection, surge protection device, insulation monitoring device, short circuit protection, over power protection

Operating Temperature

-22 ºF to +122 ºF / -30 ºC to +50 ºC

Dimensions

24.0 (W) x 27.1 (H) x 9.1 (D) in

610 (W) x 690 (H) x 230 (D) mm

Weight

176 lbs / 80 kg

Certifications

UL, cETLus

DC30P EV Fast Charger

Specifications: DC60P

Cloud service

EV OS

Maximum Output Power

60 kW

Output power

CCS1: 63 A @150~950 Vdc

CHAdeMO: 120 A @150~500 Vdc

Vehicle Connector

CCS1, CHAdeMO

Charging Cable Length

13 feet / 4 m

Input Power

3-phase, 5-wire, 480 Vac, 100 A maximum

Grounding System

TN, TT

Efficiency

≥ 94%

Power Factor

> 0.99

Display

7 inch LCD

Communication Protocol

OCPP 1.6 JSON

V2G Communication Interface

ISO 15118

Network Connectivity

Ethernet, Wi-Fi, 4G

RFID

RFID ISO/IEC 14443 A/B

Ingress Protection(IP)

IP55

Impact Protection

IK10

Electrical Protection

Over voltage protection, over current protection, over power protection, over temperature protection, under voltage protection, residual current device, surge protection device, insulation monitoring device

Operating Temperature

-22 ºF to +122 ºF / -30 ºC to +50 ºC

Dimensions

27.6 (W) x 70.9 (H) x 13.0 (D) in

700 (W) x 1800 (H) x 331 (D) mm

Weight

518 lbs / 235 kg

Certifications

UL, cETLus

DC60p

Specifications: DC120P

Cloud service

EV OS

Maximum Output Power

120 kW

Output power

CCS1: 126 A @150~950 Vdc CHAdeMO: 120 A @150~500 Vdc

Vehicle Connector

CCS1, CHAdeMO

Charging Cable Length

16 feet / 5 m

Input Power

3-phase, 5-wire, 480 Vac, 180 A maximum

Grounding System

TN, TT, IT

Efficiency

≥ 94%

Power Factor

> 0.99

Display

7 inch LCD

Communication Protocol

OCPP 1.6 JSON

V2G Communication Interface

ISO 15118

Network Connectivity

Ethernet, Wi-Fi, 3G, 4G

RFID

RFID ISO/IEC 14443 A/B

Ingress Protection(IP)

IP55

Impact Protection

IK10

Electrical Protection

Over voltage protection, over current protection, over power protection, over temperature protection, under voltage protection, residual current device, surge protection device, insulation monitoring device, short circuit protection

Operating Temperature

-22 ºF to +122 ºF / -30 ºC to +50 ºC

Dimensions

31.5 (W) x 74.8 (H) x 25.6 (D) in

800 (W) x 1900 (H) x 650 (D) mm

Weight

992 lbs / 450 kg

Certifications

UL

DC120p

Specifications: DC180P

Cloud service

EV OS

Maximum Output Power

180 kW

Output power

CCS1: 190 A @150~950 Vdc CHAdeMO: 120 A @150~500 Vdc

Vehicle Connector

CCS1, CHAdeMO

Charging Cable Length

13 feet / 4 m

Input Power

3-phase, 5-wire, 480 Vac, 270 A maximum

Grounding System

TN, TT, IT

Efficiency

≥ 94%

Power Factor

> 0.99

Display

7 inch LCD

Communication Protocol

OCPP 1.6 JSON

V2G Communication Interface

ISO 15118

Network Connectivity

Ethernet, Wi-Fi, 3G, 4G

RFID

RFID ISO/IEC 14443 A/B

Ingress Protection(IP)

IP55

Impact Protection

IK10

Electrical Protection

Over voltage protection, over current protection, over power protection, over temperature protection, under voltage protection, residual current device, surge protection device, insulation monitoring device, short circuit protection

Operating Temperature

-22 ºF to +122 ºF / -30 ºC to +50 ºC

Dimensions

31.5 (W) x 74.8 (H) x 25.6 (D) in

800 (W) x 1900 (H) x 650 (D) mm

Weight

1,102 lbs / 500 kg

Certifications

UL, cETLus

DC120p
