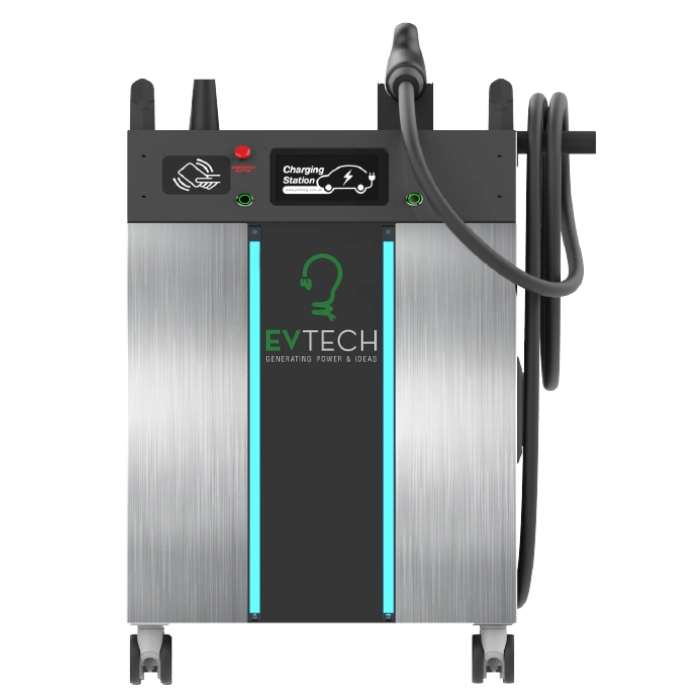

The EV Ascent 3003 is a portable DC electric vehicle charging station with wheels. This electric vehicle charger is ideal for a workshop or dealership environment. It includes hands-off management with autonomous station operation via EV OS. For fast Level 3 charging, it is ideal for deployment where vehicles need to be recharged quickly and keep moving.

Cloud Service
EV OS

Maximum Output Power
30 kW

Output Power

CCS1: 60 A @150~500 Vdc
CHAdeMO: 31.5 A @950 Vdc

Vehicle Connector
CCS1

Cord length
13 feet / 4 m

Input Power
3-phase, 5-wire, 480 Vac, 47 A maximum

Grounding System
TN, TT

Display
7 inch LCD

Communication Protocol
OCPP 1.6 JSON

Connectivity
Ethernet, Wi-Fi, 4G

RFID
RFID ISO/IEC 14443 A/B

NEMA enclosures (NEMA)
NEMA 3R

Impact Protection
IK10

Electrical protection
Over voltage protection, over current protection, over power protection, over temperature protection, under voltage protection, surge protection device, insulation monitoring device, short circuit protection, over power protection

Operating Temperature
-22° to 122° F / -30° to 50° C

Dimensions
23.2 (W) x 29.1 (H) x 19.3 (D) in
589 (W) x 740 (H) x 490 (D) mm

Weight
176 lbs / 80 kg

Certifications
ETL, FCC
